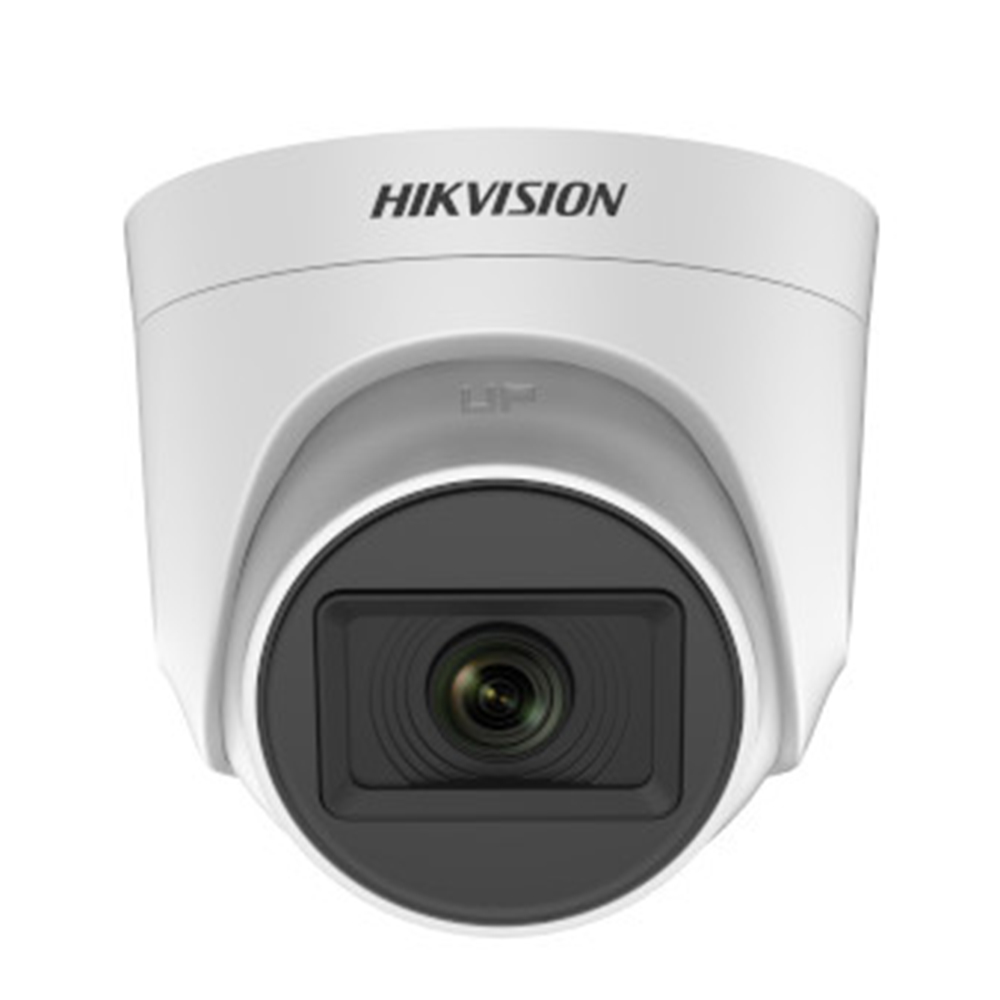

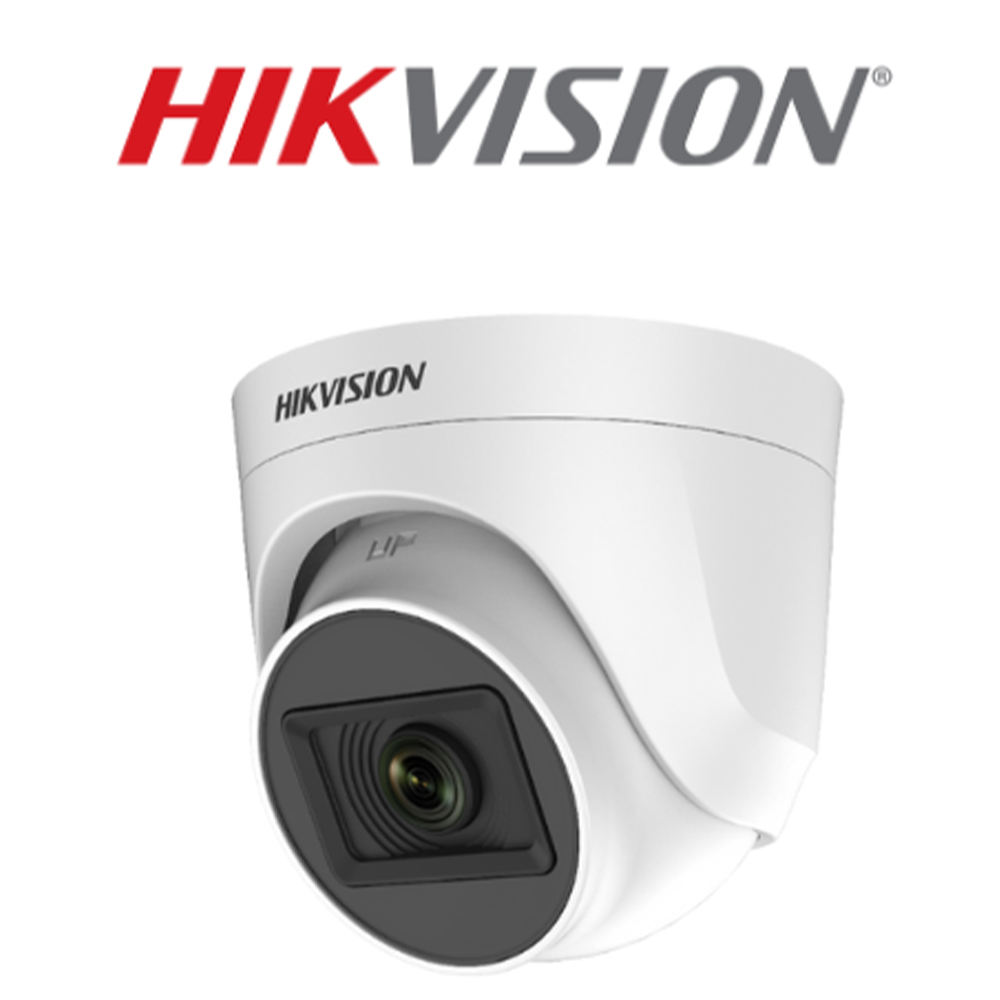

Hikvision DS-2CE76H0T-ITPF Indoor Security Camera 5MP 2.8mm

Product Description
Brand: Hikvision
Model: DS-2CE76H0T-ITPF
Type: Indoor Security Camera

Camera Specifications

• Image Sensor: 5 MP CMOS
• Resolution: 2560 (H) × 1944 (V)
• Frame Rate:
  • TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
  • AHD: 5M@20fps, 4M@30fps, 4M@25fps
  • CVI: 4M@30fps, 4M@25fps
  • CVBS: PAL/NTSC
• Lens: 2.8mm
• Shutter Time:
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Minimum Illumination:
  • Color: 0.01 Lux @ (F2.0, AGC ON)
  • 0 Lux with IR
• Adjustment Range:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotation: 0° to 360°
• Lens Mount: M12
• Day & Night: IR Cut Filter
• WDR Support: Yes
• D/N Mode: Auto/Color/BW (Black and White)

Interface

• Switch Button: TVI/AHD/CVI/CVBS

General Specifications

• Operating Conditions:
  • Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Humidity: 90% or less (non-condensing)
• IR Range: Up to 20m
• Power Supply: 12V DC
• Power Consumption: Max. 4.3W
• Material: Plastic
• Dimensions: Φ 84.6 mm × 78.9 mm
• Weight: 143 g
• Warranty: 1 Year with Warranty of the Authorized Agent
